Power Window Switches
4 Styles Available - Infinity, Chiselled, Paddle or Dimpled
Choose your style to get the perfect look for your build. Many configurations are available.
These billet aluminium power window switches match our other on/off switches.
Polarity reversing modules are included so these switches will work with all modern power windows. The lights are a separate circuit so you decide when they are lit - on Infinity & Chiselled styles only. Like the other switches, they are available in brushed, polished or Raven Black anodised finishes. Switches come with lead wires, polarity reversing modules, mounting clips and instructions. The triple kit has a double switch on the driver’s door, a single for the passenger and includes cross-over wiring. Use a double alone switch when centre mounting your switches.
Don’t know if you have Polarity reversing Motors? See the Product Instructions Tab to determine if your motors are Polarity reversing or Non-Polarity reversing.
Engraving on the rockers or face-plates is also available.
Contact us for polished and engraved pricing.
Dimensions:
Infinity & Chiselled switch faces are 2-½” high by:
Single switches are 1-3/8″ wide.
Double switches are 2-1/2” wide.
Treble switches are 3-5/8″ wide.
Quad switches are 4-3/4″ wide.
You will need 1-3/4” of back space.
Paddle & Dimpled switch faces are 1-3/4″ high by:
Single switches are 1-1/8″ wide.
Double switches are 2" wide.
Treble switches are 2–3/4″ wide.
Quad switches are 3-3/4″ wide.
You will need 1-3/4” of back space.
Power Window Switches - Infinity & Chiselled
Infinity Style - Brushed
Infinity Style - Mixed Oval
Infinity Style - Brushed
Chiselled Style - Brushed
Chiselled Style - Brushed
Infinity Style - Mixed Oval
Chiselled Style - Black
Chiselled Style - Brushed Oval
Chiselled Style - Black Oval
POWER WINDOW SWITCHES - Paddle & Dimpled
Paddle, Quad, Brushed, Vertical
Dimpled, Quad, Brushed, Vertical
Dimpled, Quad, Brushed, Vertical
Dimpled, Quad, Brushed, Vertical
Dimpled, Quad, Brushed, Vertical
Dimpled, Quad, Brushed, Vertical
On / Off Switches
4 Styles Available - Infinity, Chiselled, Paddle or Dimpled
These match our Power Window Switch styles.
Rated at 20 amps you won’t need relays for most circuits. The lights are a separate circuit so you decide when they are lit - on Infinity & Chiselled styles only.
Even mixed finishes can be ordered if you’d like.
Available in Brushed, Polished or Raven Black anodised finishes.
Switches come with lead wires attached, mounting clips and instructions.
Dimensions:
Infinity & Chiselled switch faces are 2-1/2” high by:
Single switches are 1-3/8″ wide.
Double switches are 2-1/2” wide.
Treble switches are 3-5/8″ wide.
Quad switches are 4-3/4″ wide.
You will need 1-3/4” of back space.
Paddle & Dimpled switch faces are 1-3/4″ high by:
Single switches are 1-1/8″ wide.
Double switches are 2" wide.
Treble switches are 2–3/4″ wide.
Quad switches are 3-3/4″ wide.
You will need 1-3/4” of back space.
Switches
Self Cancelling Turn Signal Kit
Self Cancelling Turn Signal Kit
Self Cancelling Turn Signal Kit
Beautiful switches with an adjustable (1 – 45 second) timed shut-off. Switch(es), timing module, relay pack and instructions. Now with our new compact Turn Signal Module – just 1-1/2″ square X 7/8″ high. Get our beautiful L75 series 16mm switches in a Timed Self-Cancelling Turn Signal Switch Kit (on left in photo). And they have built-in ring LED’s. Specify LED colour: blue, green, red or white and switch colour: chrome or black. (on left in photo) Order the L75-22 switches and you will get the 22mm version of the L75 series making it much easier for larger fingers to depress the switches.
Self-Cancelling Timing Module
Self Cancelling Turn Signal Kit
Self Cancelling Turn Signal Kit
Self-Cancelling Timing Module only, with wires. Adjustable (1 – 45 second) timed shut-off. Switch(es), timing module, relay pack and instructions. Now with our new compact Turn Signal Module – just 1-1/2″ square X 7/8″ high.
Turn Signal Module
Self Cancelling Turn Signal Kit
Manual Cancelling Turn Kit
If you have your own turn signal switches but need brake light override circuitry, get our Turn Signal Module. Full instructions and schematic. (NOTE: The Turn Signal Module is already included in all of our Turn Signal Switch Kits.) Wire leads, instructions and schematic. (Uses a single two-prong flasher, not provided.) Turn Signal Module is just 1-1/2″ square X 7/8″ high.
Manual Cancelling Turn Kit
Manual Cancelling Turn Kit
Manual Cancelling Turn Kit
Get these beautiful switches in a Manual-Cancelling Turn Signal Switch Kit. They have built-in ring LED’s. Specify LED colour: blue, green, red or white and switch colour: chrome or black casings. Good looking switches control 40 amp brake light override circuitry to let you use a single brake/turn bulb. Mount in the dash or console. Wire leads, instructions and schematic. (Uses a single two-prong flasher, not provided.) Now with our new compact Turn Signal Module – just 1-1/2″ square X 7/8″ high.
Billet Face Plate - 4 Hole
Manual Cancelling Turn Kit
Billet Face Plate - 4 Hole
A great way to mount switches (not included).
2 sizes available:
1” wide x 4" long.
with 16mm diameter holes.
1 1/4” wide x 5" long
with 22mm diameter holes.

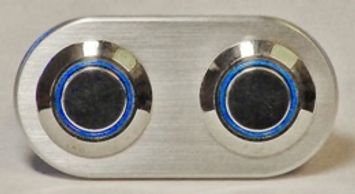

Billet Face Plate - 2 Hole
Manual Cancelling Turn Kit
Billet Face Plate - 4 Hole
A great way to mount switches (not included).
2 sizes available:
1” wide x 2” long
with 16mm diameter holes.
1 1/4” wide x 2 1/2" long
with 22mm diameter holes.
Press Tech Touch Pad Switch
Press Tech Touch Pad Switch
Press Tech Touch Pad Switch
A brand new way to activate door solenoids or actuators. This small, 1″ x 1″ x 1/8″ thick pad switch can be hidden in the neatest places. Put it under upholstery, inside a fender lip or mirror housing, almost anywhere and activate it with a simple press. Fully waterproof pad switch comes with quality 3M tape for mounting.
Please Note: If using solenoids or for loads over 2 amps, a relay must be used.
Express Power Window Module
Press Tech Touch Pad Switch
Press Tech Touch Pad Switch
Now you can enjoy the convenience of “one touch” windows on your vehicle. This compact unit mounts inside your door and works with all polarity reversing motors. Simply tap your switch once and the window travels all the way up or down. While in motion just give the switch another tap to stop mid-way. This works with your remote too! Each express module comes with connectors, heavy duty mounting tape and instructions. Each 3″ by 2″ by 1″ module operates one window.

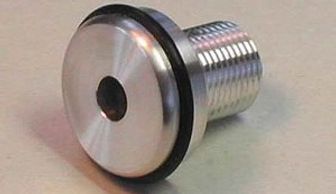

Headlight Switch Bezel
Press Tech Touch Pad Switch
Headlight Switch Bezel
This billet aluminium bezel replaces the hex nut on a standard GM headlight switch.
Comes with O-Ring.
Has 7/16 – 28 thread and .203" Dia centre hole.
Knobs
Manual Safety Lock Pins
Billet Levers for Safety Locks
Billet Levers for Safety Locks
Constructed from aircraft quality aluminium and have stainless steel lock pins and mounting hardware for optimum performance and reliability. Slim 1″ thick x 2″ tall x 3-1/2″ long. Built-in micro switches allow you to use a warning light (LED included). May be installed in doors or kick panel area. A must for suicide doors.
Billet Levers for Safety Locks
Billet Levers for Safety Locks
Billet Levers for Safety Locks
Our manual safety locks come with a plastic lever for the manual release. But your car has all the billet goodies! Match it all up with these beautiful billet aluminium levers.
Fit 1/4″ shaft with set screw.
Billet Bullet Dress-Up Knobs
Billet Levers for Safety Locks
Billet Bullet Dress-Up Knobs
What a great look! A bit of the 60’s brought into the 21st century. The knob is 3/4” diameter by 1-3/16” long. Use as a switch dress-up, grill decoration or whatever you want!
4 fitting options:
- 10-32 thread
- 1/4-20 thread
- For 3/16" shaft
- For 1/4" shaft
