Wire & Cable Routing
Nylon Door Wire Looms
Nylon and Billet Door Wire Looms
These plastic wire looms for door jams are 5/8″ O.D. x 3/8″ ID. x 7+” long. Fixed grommet at one end for the door jam. Sliding grommet for the other end goes into the door.
Nylon and Billet Door Wire Looms
Nylon and Billet Door Wire Looms
The look of Billet & Black, the door looms are 1/2″ O.D. x 3/8″ I.D. x 7+” effective length. One fixed and one sliding aluminium boss. Plastic lined. Mounts into 3/4″ and 5/8″ Diameter holes with set screw secured “quick” collars.

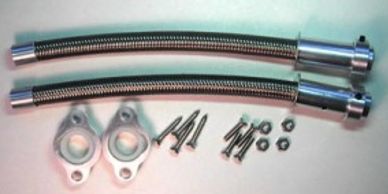

Stainless Steel Braided Door Wire Looms
The added looks of stainless braid, the door jams are 1/2″ O.D. x 3/8″ I.D. x 7+” effective length. One fixed and one sliding threaded aluminium boss. Plastic lined. Mount into 3/4″ Diameter holes with jam nuts included.
The sliding collars may be trimmed shorter when going through less material.
Jumbo Door Checks
Hollow stainless steel door checks hide
wiring for power windows, power locks, electric doors, speakers, etc.
while working as a door stop.
- Stainless steel construction.
- 5/8" x 1/4" opening will accommodate up to 6 wires.
- Includes installation hardware and instructions.

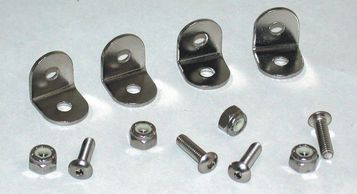

Brackets for Jumbo Door Checks
Installation brackets for Jumbo Door Checks.
- Stainless steel.
- Includes 4 L-brackets and installation screws.
Stainless Steel Braided Door Wire Looms - Suicide Doors
These wire looms can open to more than 200 degrees and not bind! Swivel ball bushings assure smooth operation. 1 1/2″ O.D. X 3/8″ I.D. X 7+” length, plastic lined S/S Braid. New Quick Collar ends. Ball swivel flange end mounts vertically and is just 2″ high.
Emergency Door Release Kit
Emergency Door Release Kit
Emergency Door Release Kit
Even the very best electrical entry systems could go bad. This Emergency Door Release Kit gives you the mechanical back-up way to trip the driver door latch and get into your car. Kit contains 8+ feet of encased cable, stainless steel braided door wire loom with billet ends to run the cable through and into the door, billet pull knob with set screw, cable clips and mounting hardware. Easily run into the engine compartment or under a fender well. Why leave yourself unprotected?
Billet Wire Port - Brushed
Emergency Door Release Kit
Emergency Door Release Kit

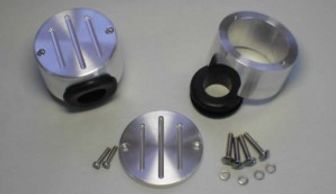

Here is a great way to dress up the area of the firewall where the wiring harness goes through. The Wire Port main body is 2″ dia. with a 1-1/2″ inside dia. and is secured to the firewall around the wire bundle hole with four truss head screws. A 1″ x 13/16″ deep cut-out in the Wire Port body allows the wire bundle to exit close to the firewall (a rubber grommet is included for smaller wire bundles - 16mm / 0.63" hole). The body is then capped off with an attractive machined cover which has three ball-milled grooves. The design allows for the wire bundle to be installed before the final attachment of the Wire Port is done. Attractive, functional and at a very reasonable price.
Billet Wire Port - Black
Emergency Door Release Kit
Billet Wire Pass-through - Brushed
Here is a great way to dress up the area of the firewall where the wiring harness goes through. The Wire Port main body is 2″ dia. with a 1-1/2″ inside dia. and is secured to the firewall around the wire bundle hole with truss head screws. A 1″ x 13/16″ deep cut-out in the Wire Port body allows the wire bundle to exit close to the firewall (a rubber grommet is included for smaller wire bundles - 16mm / 0.63" hole). The body is then capped off with an attractive machined cover which has three ball-milled grooves. The design allows for the wire bundle to be installed before the final attachment of the Wire Port is done. Attractive, functional and at a very reasonable price.
Billet Wire Pass-through - Brushed
Billet Wire Pass-through - Brushed
Billet Wire Pass-through - Brushed
A really attractive way to dress up the area where the wires come through the firewall. Unit measures 1-1/2″ wide x 2″ tall x 1″ deep with a wire exit size of 1″ wide x 3/4″ deep. Blind fastens from behind for that smooth look. Hardware and template included.
Billet Wire Pass-through - Black
Billet Wire Pass-through - Brushed
Billet Wire Pass-through - Black
A really attractive way to dress up the area where the wires come through the firewall. Unit measures 1-1/2″ wide X 2″ tall X 1″ deep with a wire exit size of 1″ wide X 3/4″ deep. Blind fastens from behind for that smooth look. Hardware and template included.
Magnum Shooters
4 Contact With Pin Switch
Door jam wire contacts eliminate looms and wire flexing. With screws and connectors. Per door. Made by Dakota Digital.
Pin switch can be wired for courtesy light.
